techspecs

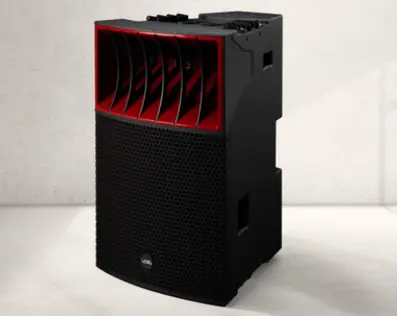

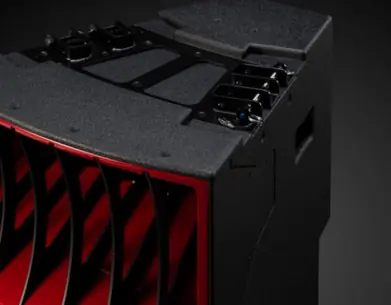

Reliable, predictable performance across a wide range of system configurations. Precisely controlled dispersion and flexible deployment give accurate sound pressure and coverage, tailored to each application.

• Three-way, bi-amped arrayable point source
• Ground stack or flying configurations
• FEA-optimised asymmetrical waveguide and horn
• Dual 4-pin locking connector with link-through
• Optional rigging and fly bar
• FIR-optimised preset with Void amplifiers
• State-of-the-art coaxial ring radiator
• High-sensitivity, lightweight neodymium transducer
• Black with a red horn and black fins

Consistent performance with precise coverage, controlled dispersion and flexible deployment for any application.

• Flies the Arclite tops over the floor
• Optional rigging for ground stack or flown use

High-efficiency subwoofer with a single 21" driver: powerful, articulate bass and deep low-frequency response down to 27 Hz, fast and controlled.

• Single 21" horn-loaded subwoofer
• Extended low-frequency response
• 2,000 W AES power handling, 6" voice coil
• Dual 4-pin locking connector with link-through
• 18 mm birch plywood enclosure
• Black with red bracing

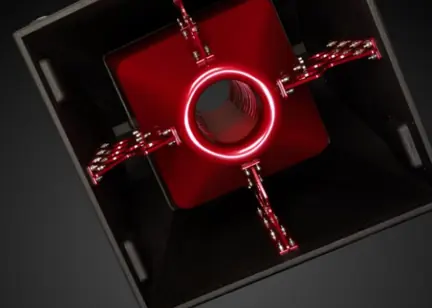

Four 12-inch low-frequency drivers for exceptional high output: powerful bass, impressive impact and outstanding clarity.

• 4 × 12" high-power transducers
• Pressure-gradient port: low distortion, minimal turbulent noise
• Hyper-quick transients
• High-efficiency front-loaded horn
• Dual 4-pin locking connector with link-through
• Upper-bass enclosure paired with Nexus X or Nexus XL
• Black with red bracing

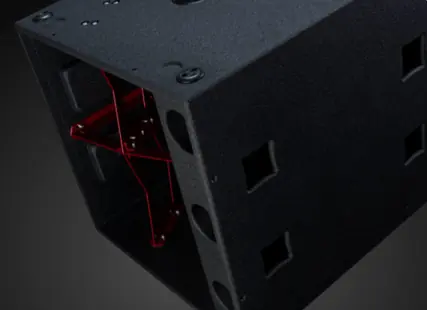

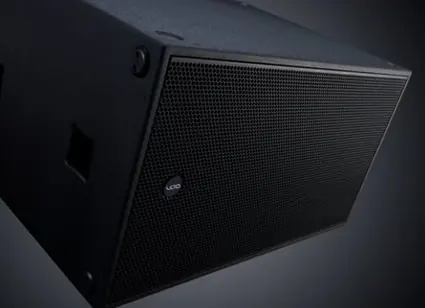

Dual 18-inch neodymium drivers with 4-inch voice coils: deep, powerful bass, extended low end and outstanding efficiency for demanding live sound.

• 2 × 18" neodymium low-frequency drivers, 4" voice coils
• 2,400 W AES power handling
• Optimally damped, minimal-mass cabinet
• Dual 4-pin locking connector with link-through
• 18 mm birch plywood construction
• Black textured TourCoat polyurea finish

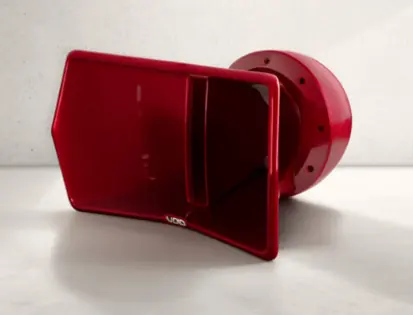

Built for Front of House and DJ monitoring alike, with exceptional performance and seamless integration across sound system configurations.

• Horn-loaded 12" coaxial loudspeaker
• High-sensitivity, high-output design
• FEA-optimised waveguide for pattern control
• Controlled 70° × 40° dispersion
• Low-resonance fibreglass composite
• T75-style fixing points
• FIR-optimised preset with Void amplifiers

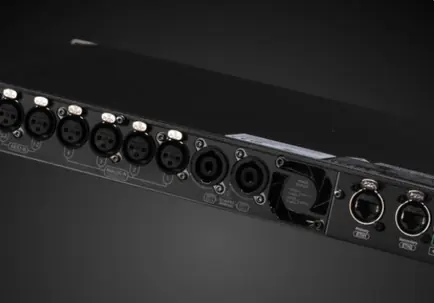

Flexible routing, integrated DSP and ArmoníaPlus control for comprehensive system control, precise optimisation and reliable performance.

• 4 channels, 1,600 W per channel at 8 Ω
• 3,000 W per channel at 4 Ω
• Analogue and AES3 audio inputs
• Full DSP suite and monitoring via ArmoníaPlus
• Class-D with patented Smart Rails Management
• Automatic power sharing for asymmetrical loads
• Void preset marketplace: FIR-optimised phase, protection limiters
• Universal mains, single, bi- and three-phase
• WM Touch compatible

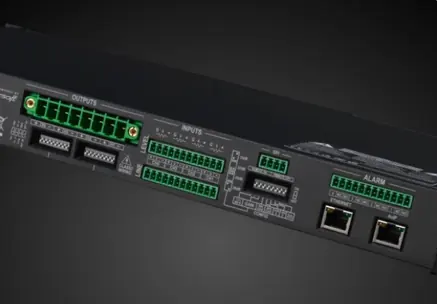

Reliable, consistent, high-performance amplification, designed for nightclubs, hotels, restaurants and retail.

• 4 channels, 1,200 W per channel at 8 Ω
• Full DSP suite and monitoring via ArmoníaPlus
• Class-D with patented Smart Rails Management
• DSP+ variants add AES67 digital audio networking
• Automatic power sharing for asymmetrical loads
• Low-Z (from 2 Ω) and 70 V / 100 V distributed systems
• Universal mains (90–264 V AC)
• WM Touch compatible
